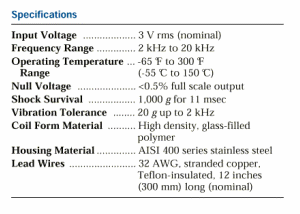

Electrical Specification - LVDT Transformer

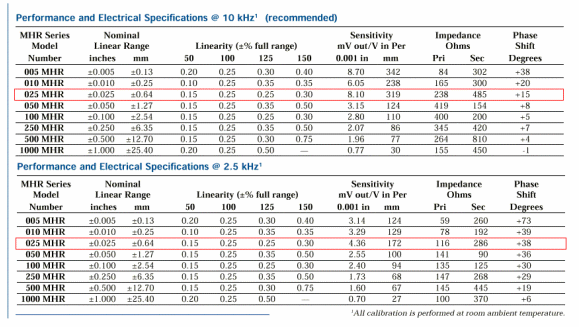

The standard Colorado Precision AB LVDT Probes use Schaevitz Model 025MHR transformers (in red below). Special order probes that have ranges of either +/-.050" or +/-.100" ranges are also available (050MHR and 100MHR).
